Supporting Harvest From Ground to Grain

Agricultural Rubber Tracks

From tractors and combines to grain carts and harvest equipment, agricultural rubber tracks help support equipment performance in varying soil and field conditions. Manufacturers offer multiple tread patterns, widths, and construction features to match specific applications.

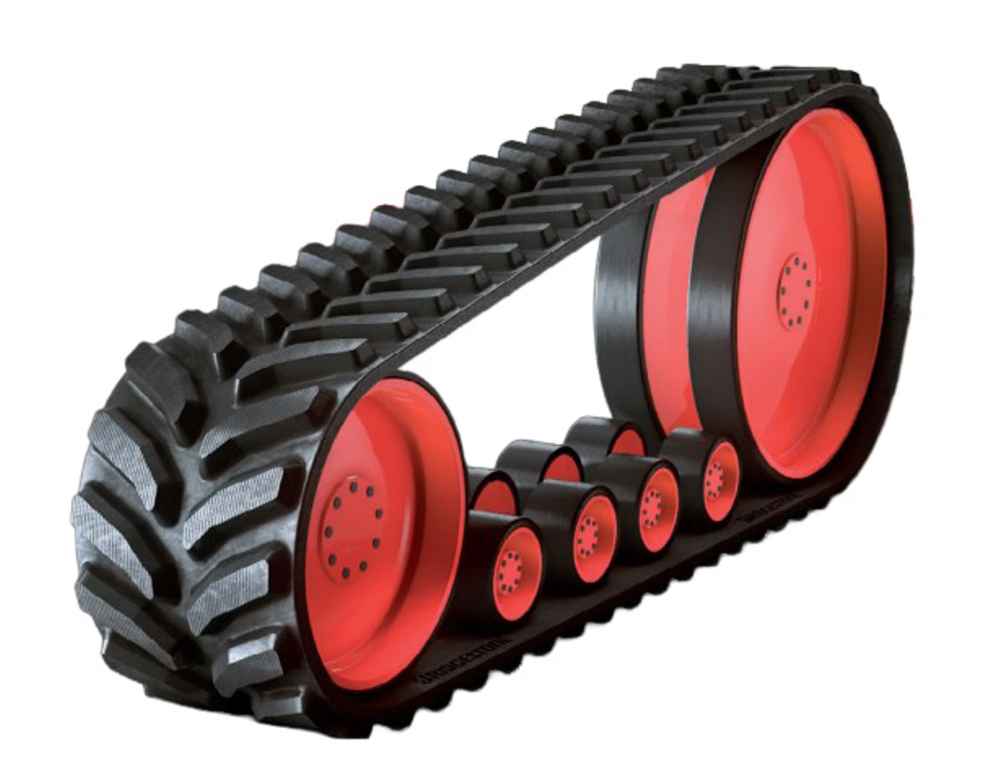

Ag Tracks

Firestone Ag Tracks are designed to help tracked tractors maintain traction while limiting soil disturbance in challenging conditions.

Features:

• One-piece vulcanized construction with no tread seams
• Pro-Edge sidewalls add protection on rocky terrain
• Cable/ply design helps reduce uneven load distribution
• Double-angled tread bars provide traction and self-cleaning
• Available in multiple widths and configurations for agricultural track systems

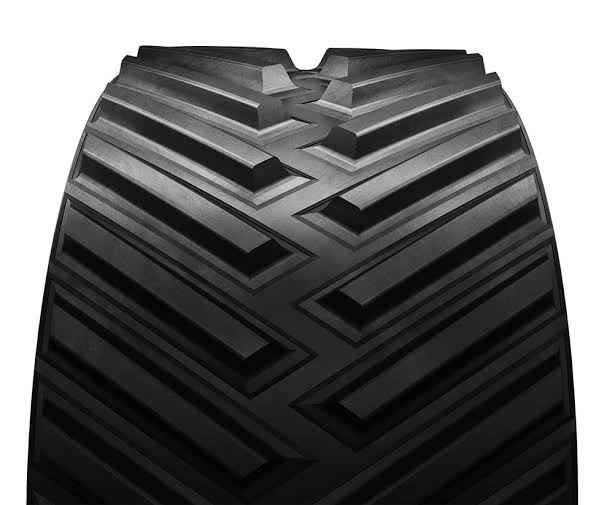

Camso Rubber Tracks

Camso rubber tracks available through Rubber Track Solutions are built for a range of agricultural equipment, including tractors, combines, sprayers, and grain carts.

Features:

• Designed for traction, flotation, and stability in varying field conditions
• Helps reduce soil compaction under heavy harvest loads
• Built for precision, consistent contact, and long days in the field
• Available for tractors, combines, sprayers, and grain carts
• Track selection considers soil, crop type, terrain, and seasonal demands



18-Inch Trackfarmer Track

The 18-inch Trackfarmer Track is an aftermarket option for Caterpillar tracked tractors used primarily in field applications.

Features:

• 18-inch track for Caterpillar 35, 45, and 55 tractors
• OEM references 1R-1284 and 1R-1110
• Designed primarily for field applications
• Road travel of 10 miles or more should be limited to 15 miles per hour
• Sold as a cost-conscious aftermarket track option



Grain Handling

Whether loading bins, transferring seed, distributing grain, or checking moisture and test weight, today’s grain handling equipment supports a range of tasks from harvest through storage. Equipment needs vary by application, capacity, crop, and the information required to manage grain effectively.

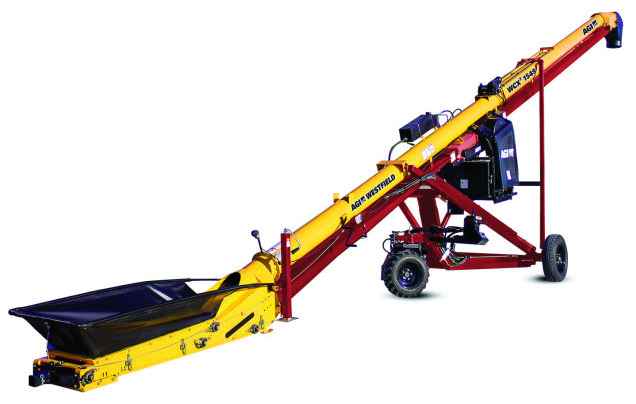

WCX3 FMD Field Loader

The Westfield WCX3 FMD Field Loader combines a low-profile hopper with belt conveyor design for grain and other agricultural products.

Features:

• 15-inch belt in a 10-inch tube
• Capacity up to 10,000 bushels per hour
• Low-profile hopper fits under low-clearance silos
• Turbo Clean Wash System handles fertilizer and oilseeds
• Optional 33-horsepower electronic fuel injection (EFI) or 32-horsepower carbureted gas engine



TD-450 (Top Drive) Portable Auger

Available in several tube diameters and lengths, the TD-450 Portable Auger from Sudenga Industries provides flexible grain transfer for loading and unloading applications.

Features:

• Available in 6-, 8-, 10-, 12-, and 14-inch tube diameters
• Capacities range from 1,200 to 11,000 bushels per hour
• Choice of power take-off (PTO), electric, gas, or hydraulic drive systems
• A-frame transport with manual or hydraulic winch options
• Optional hinged or 17-degree hopper and swivel transport configurations

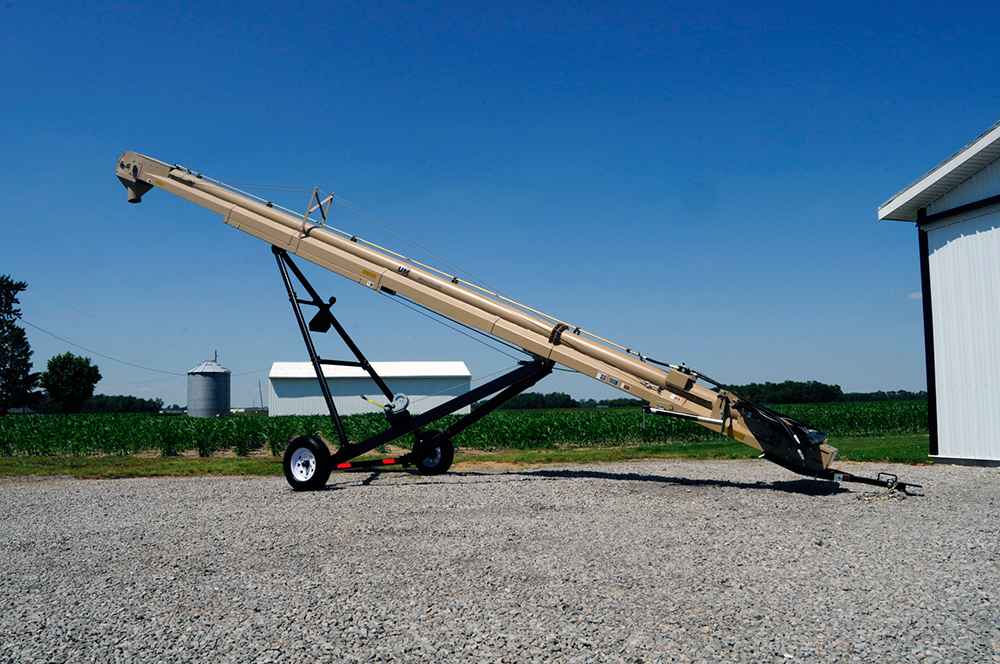

Portable Conveyor

The Unverferth Portable Conveyor features a belt-driven design that supports efficient seed transfer while maintaining gentle material handling.

Features:

• Available in 21-, 30-, and 35-foot lengths
• Patented 12-inch, five-ply rubber belt with cupped cleats
• Handles up to 35 bushels per minute (2,040 bushels per hour)
• Hydraulic or electric drive options available
• Wide hopper with cleanout door and protective intake grating

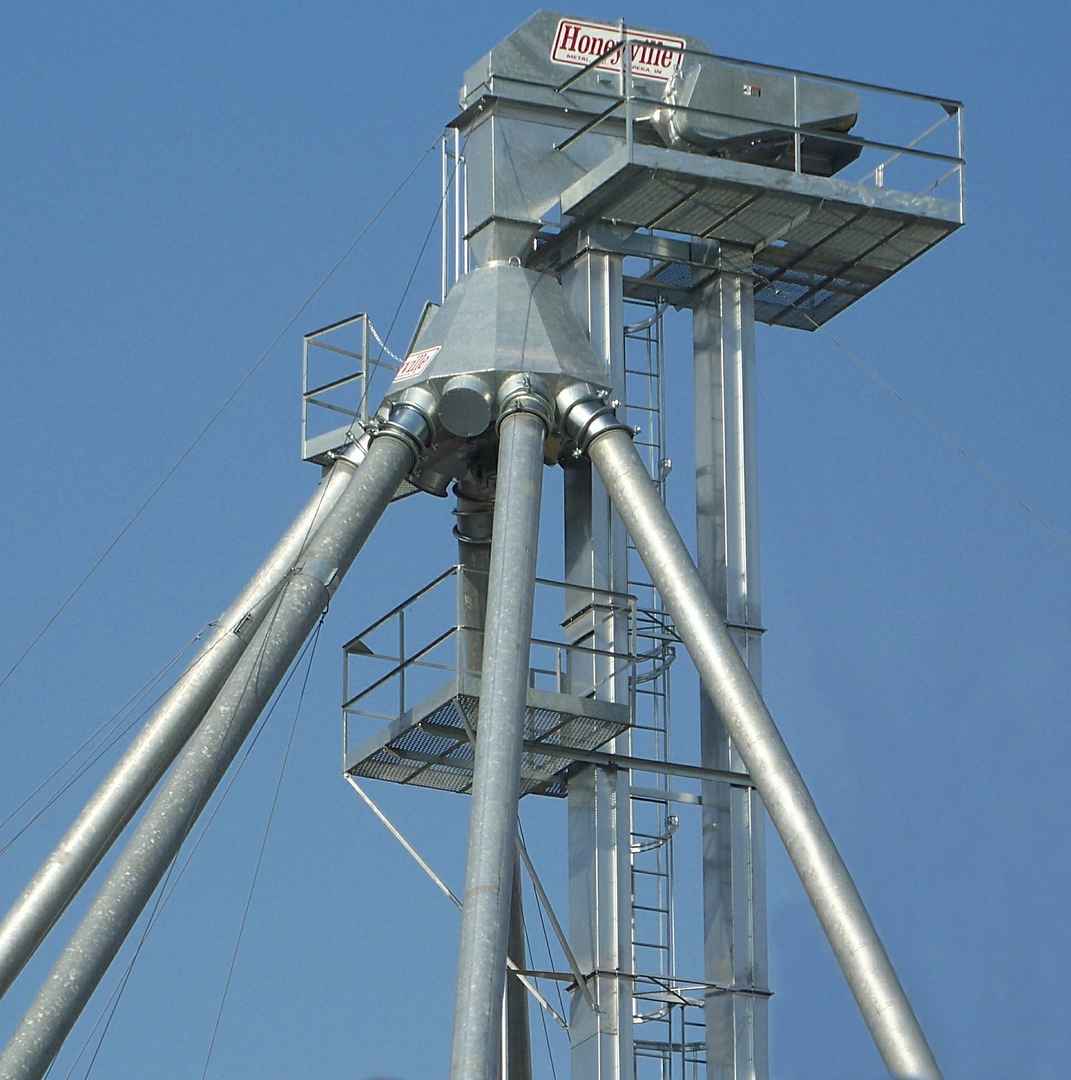

Bucket Elevators

Honeyville Bucket Elevators are designed for vertical grain handling applications with multiple models available to match different capacity requirements.

Features:

• Seven models available with capacities from 1,350 to 32,000 bushels per hour
• Galvanized steel construction for long-term durability
• High-strength PVC belt with optional rubber belt configurations
• Polyethylene buckets with steel bucket options available
• No-tool access doors and service-friendly components simplify maintenance



Perten AM5300 Grain Moisture Meter

The Perten AM5300 builds on the AM5200-A platform with updated features for grain moisture measurement and sample analysis.

Features:

• 7-inch touchscreen for easier operation
• Automatic shipping locks and load cell overtravel protection
• Quick-pick product selection for grain analysis
• New data communication options
• Continuous copper temperature sensor for grain sample measurement



GAC 2700-AGRI Grain Analysis Computer

The GAC 2700-AGRI provides on-farm grain analysis for measuring moisture and test weight across a range of grain conditions.

Features:

• Measures grain moisture and test weight
• Temperature sensing for frozen and hot grain
• Large color touchscreen interface
• Stores up to 3,000 sample results for export or printing
• Hot corn calibration for testing grain directly from the dryer
